Effortless CL intensity detection

Use JOLT for rapid and convenient CL detection. Gain valuable insights into geological materials by mapping the emitted CL intensity to reveal properties such as crystal growth, zonation, deformation, and defect structures. Additionally, you can measure the CL emission of bulk materials such as semiconductors and rare-earth doped materials.

Advantages of JOLT

list-arrow Rapidly obtain micro- and nanoscale insights

list-arrow Efficiently screen your materials for further analysis

list-arrow Easy integration and operation

list-arrow Simultaneous acquisition with other (analytical) EM signals

list-arrow Extremely large FOV (upto mm)

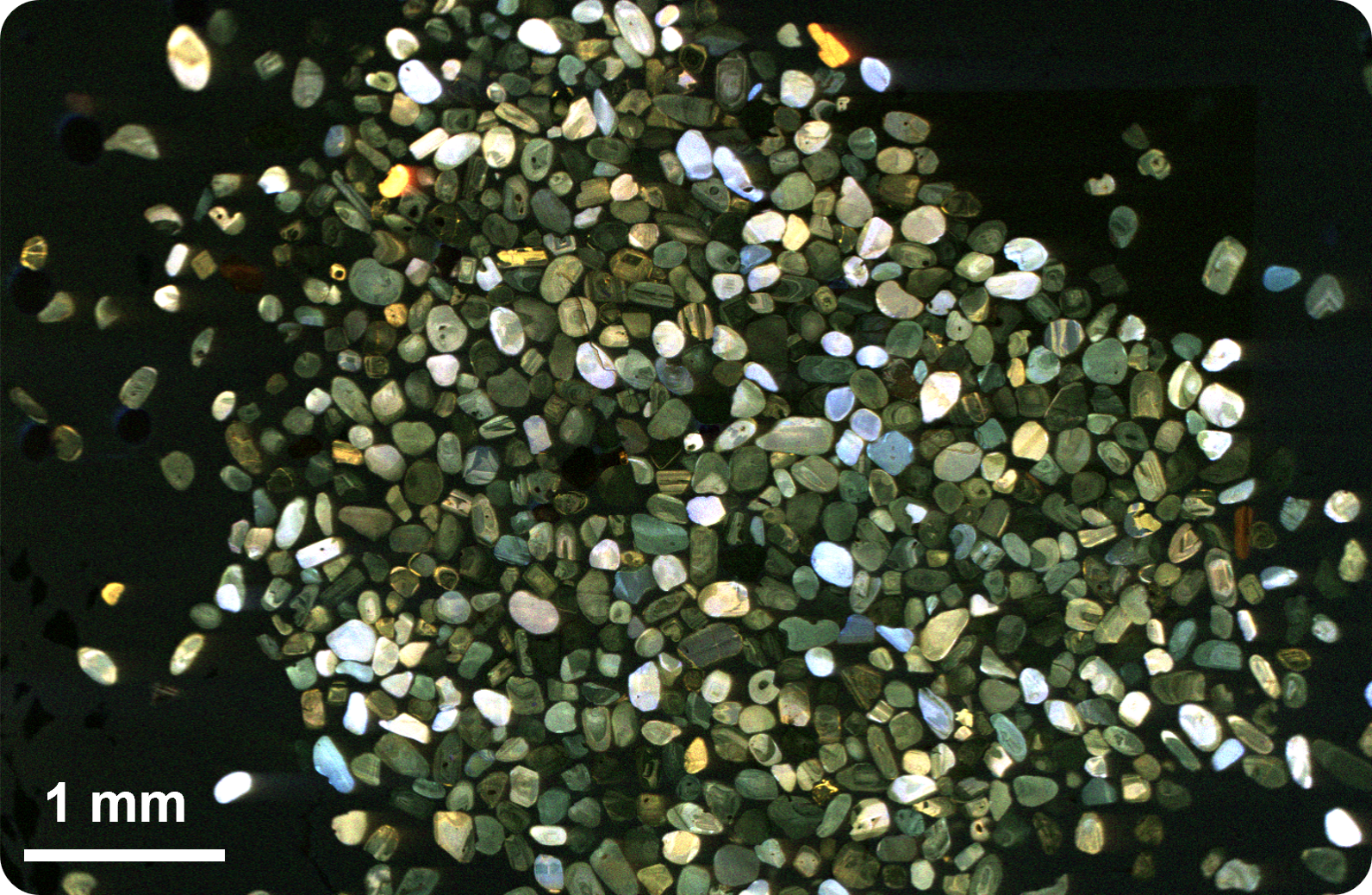

color_zircons-2

Direct CL detection in your SEM

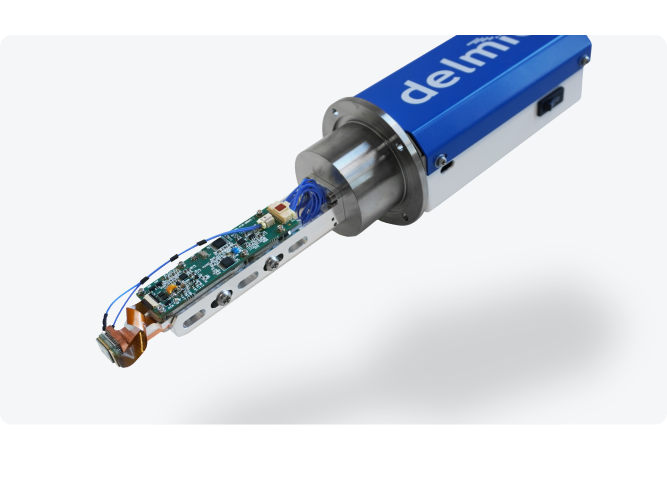

JOLT is an entry-level cathodoluminescence detector that offers two versions: a panchromatic detector and an RGB (colored CL) detector. It provides direct CL detection without any moving parts. Integration into your SEM couldn't be simpler as JOLT is compatible with all SEM brands and mounted on a single vacuum EDS port.

BSE CL-1

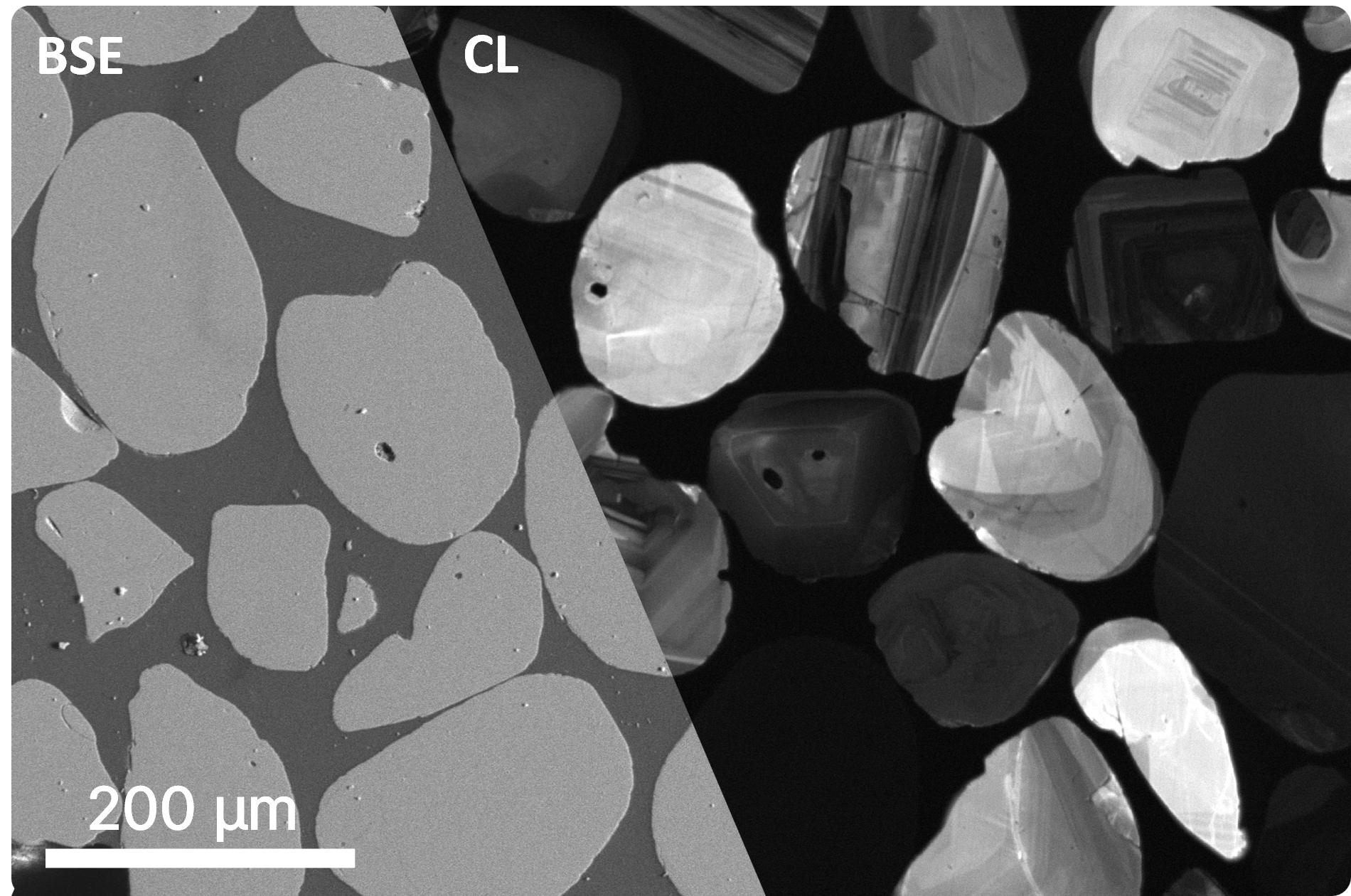

Parallel aquisition of CL and Backscatter imaging

To gain deeper insights into the properties of your sample, combine JOLT 2.0 with other SEM-based techniques for correlative imaging, or use it as an effective screening tool for advanced characterization techniques such as mass spectrometry.

Imaging results

Imaging with JOLT

Large FOV zircon
InGaN defects
quartz

Zircons

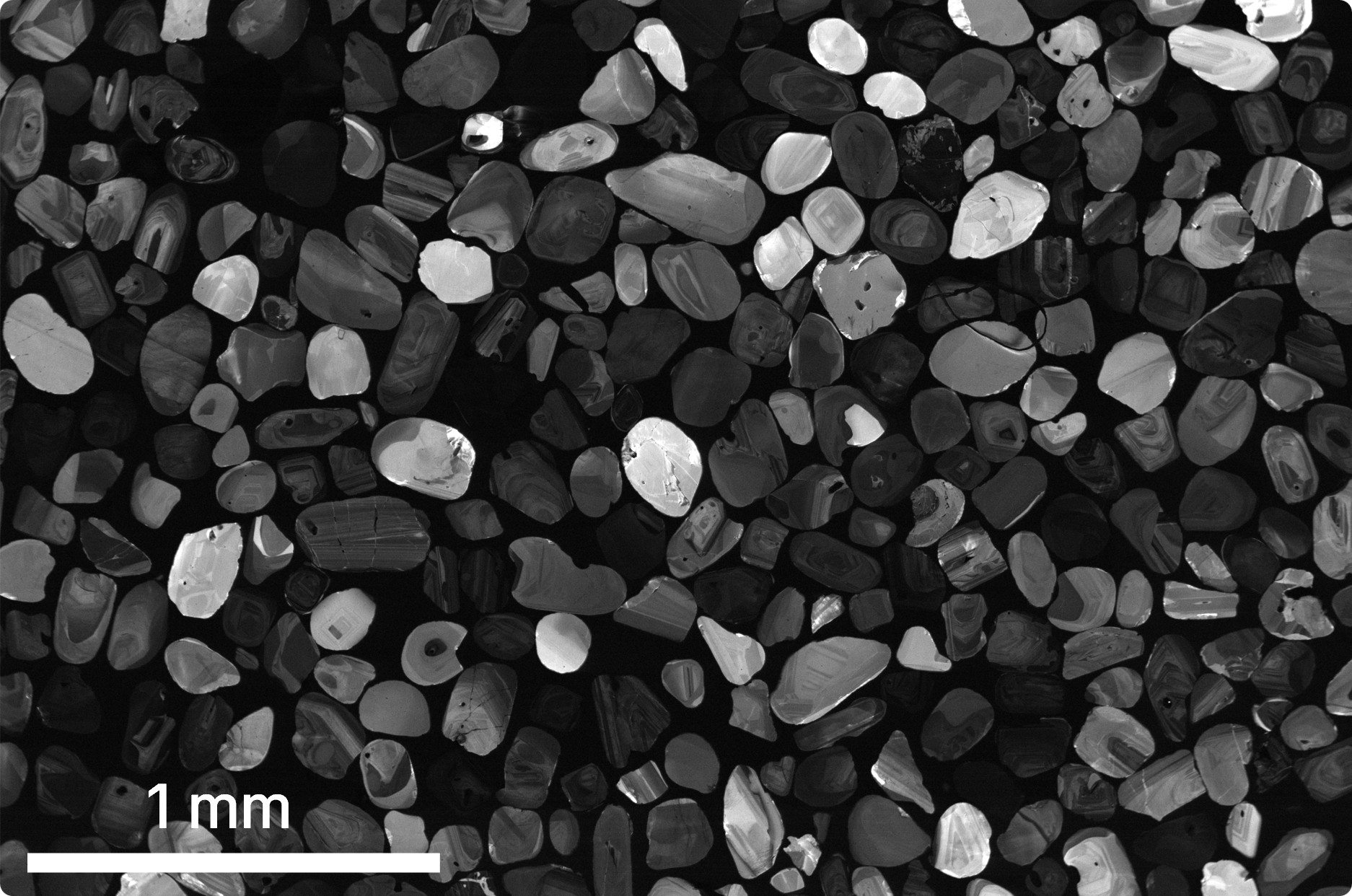

Large area CL map of zircon grains. Sample courtesy Ryan McAleer, USGS. Image acquired at 15 kV, 1.4 nA and a dwell time of 100 µs.

Zircons

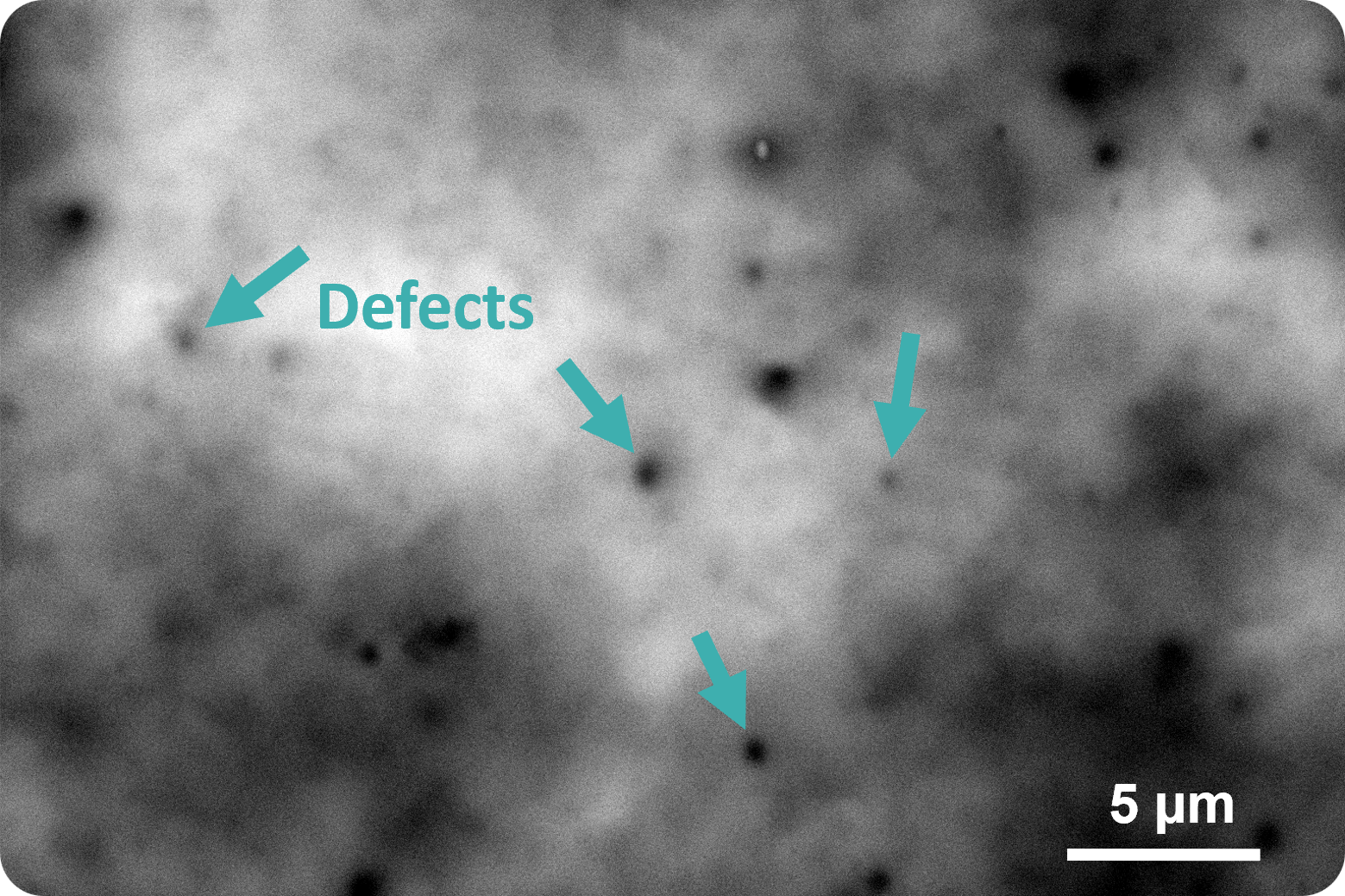

CL intensity map highlighting defects and variations in InGaN multiple quantum wells emission. Acquired at 10 kV, 0.5 nA and, a dwell time of 20 µs

Geology

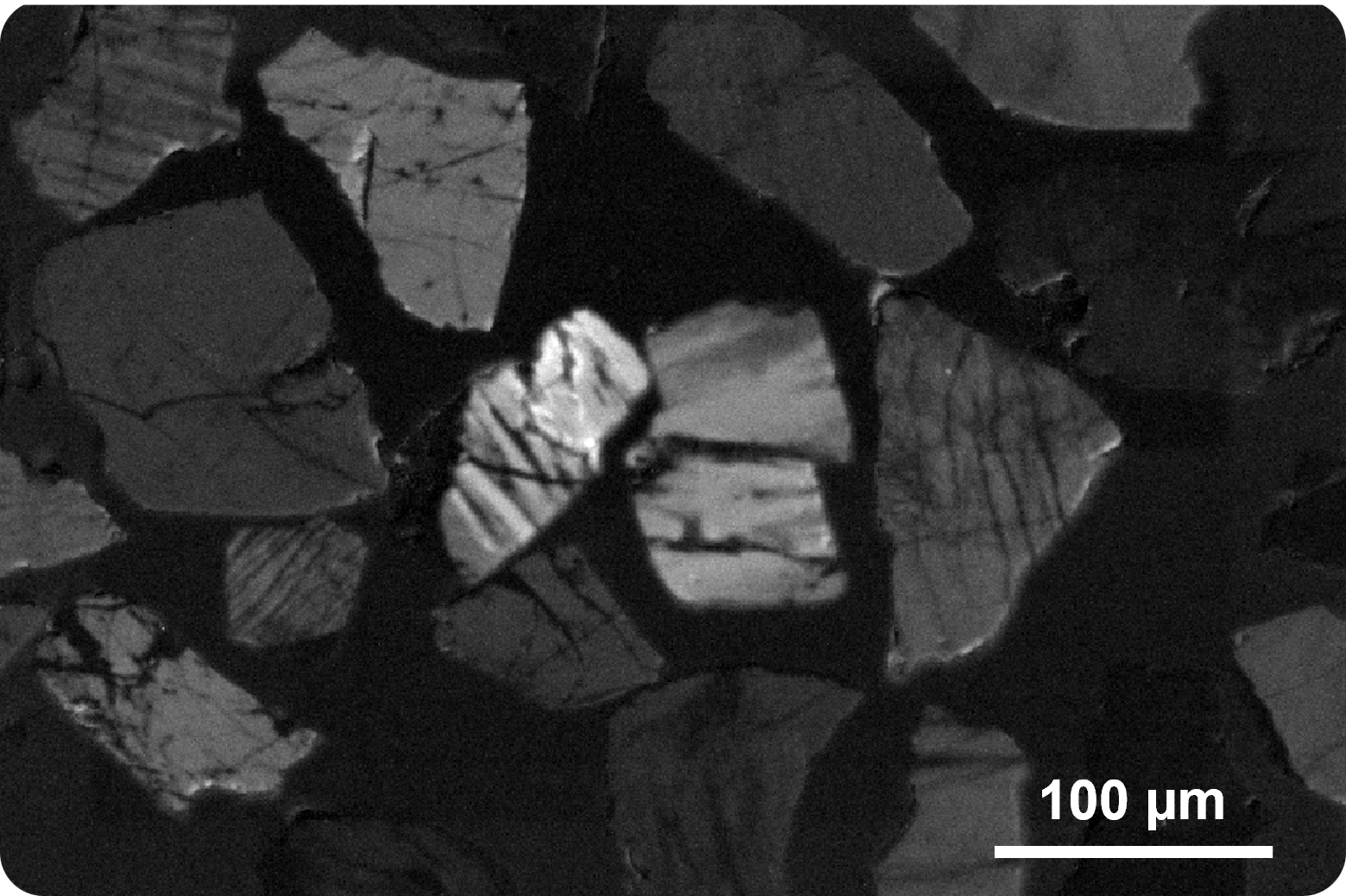

Fractured quartz grains in an Arkose sample from the Unicoi Formation (Virginia, USA). Sample courtesy Ryan McAleer USGS. Image acquired at 15 kV, 6 nA, and a dwell time of 500 µs.

Arrow-iso-right(1)
Arrow-iso-right(1)
Interested to learn more on CL imaging for zircons?
Interested to learn more on CL imaging for zircons?
Interested to learn more on CL intensity mapping?

Supporting the field

Company Logo - Zhengzhou University
Company Logo - Monash
Company Logo - BECThai
Company Logo - Emsis
Company Logo - China University of Geosciences
Company Logo - Hitachi Brazil
Company Logo - Amherst College
Company Logo - ETH Zurich
Company Logo - CNR NANOTec
Company Logo - Rome University
Company Logo - UCL
Company Logo - NewSpec
Company Logo - Zhejang University
Company Logo - Beijing Petrochemical Tec

Interested?

Reach out to our team of specialists to find out how our solutions can help you advance your research towards a next breakthrough.

Application areas

What can JOLT do for your research?

Arrow-iso-right(1)
Arrow-iso-right(1)

Insights

Arrow-iso-right(1)
Arrow-iso-right(1)
C_Hero-banner-image-tablet_JOLT

Specifications sheet

Fast and flexible cathodoluminescence detection

Read now
Image Thumbnail Application note CL ZirconsRES_380x215

Application note Geology

Cathodoluminescence for zircons

Read now

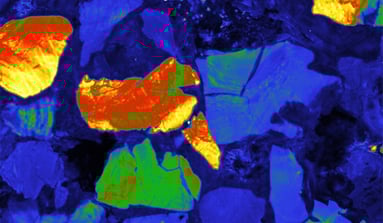

cathodoluminescence-intensity-mapping
